Coil

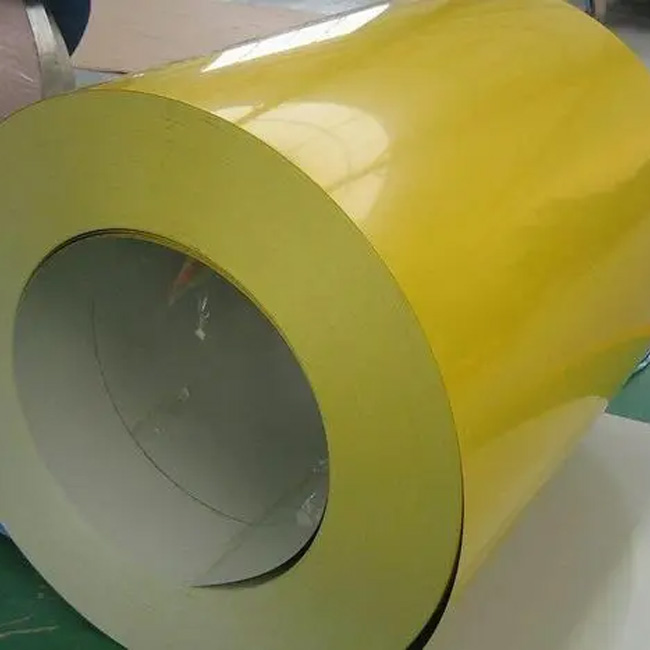

Color coated steel coil
Color coated coil is a product of hot galvanized sheet, hot aluminum plated zinc plate, electrogalvanized sheet, etc., after surface pretreatment (chemical degreasing and chemical conversion treatment), coated with a layer or several layers of organic coating on the surface, and then baked and cured. Because coated with a variety of different colors of organic paint color steel coil plate named, referred to as color coated coil.
Product name | color coated steel coil |
Material | DX51D,DX52D,DX53D,DX54D,S250GD,S350GD,S550GDetc. |
Thickness | 0.12-4mm |
Standard | ASTM/DIN/JIS/BS/GB/T |
Zinc coating | 30-275g/M2 |
Width | 600-1500mm, usually 1250mm,1000mm,1240mm,1500mm,914mm,750mm and so on. |
Grade | TDX51D+Z,TDX52D+Z、TDX53D+Z、TDX51D+AZ、TDX52D+AZ、TDX53D+AZ、TDX51D+ZF、TDX51D+ZA、TDX52D+ZA、TDX53D+ZA、TDC01+ZE、TDC02+ZE、TDC03+ZE、TS250GD+Z、TS280GD+Z、TS320GD+Z、TS550GD+Z TS250GD+ZF、TS280GD+ZF、TS320GD+ZF、TS250GD+ZF、TS280GD+ZF、TS320GD+ZF、TS350GD+ZF TS550GD+ZF、TS250GD+AZ、TS280GD+AZ、TS320GD+AZ、TS350GD+AZ、TS550GD+AZetc. |
Application | Inner decoration/School board/Making boxing |
Paint Top (microns) | 15-35 microns |
Paint Back (microns) | 5-10 microns |
Coil ID | 508/610 mm |
Surface | Matt, high gloss, double coated, wood pattern, marble pattern,etc. |
